Gauntlet 2 Memory Masters


Background

In addition to Fire Beast, we salvaged other nonworking coin-op games including a 2-player Gauntlet cabinet. It turned out to be a Gauntlet 2 ROM set installed inside but there was also a dot-matrix printout explaining the memory map itself, including bug fixes!

Scans

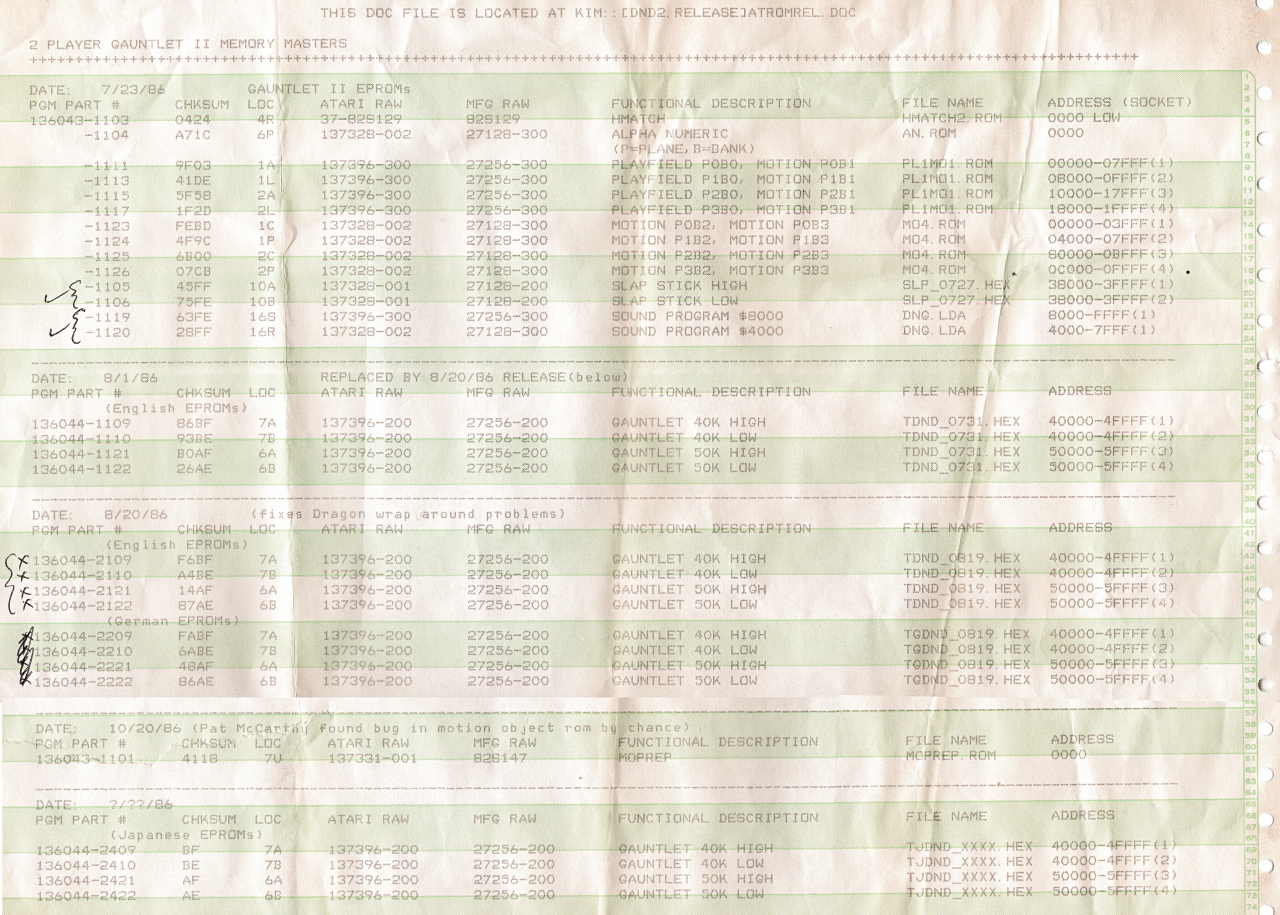

A stitched-up scan is presented below and a larger version is available here for download (874 KB).



Gauntlet 2 Memory Map
